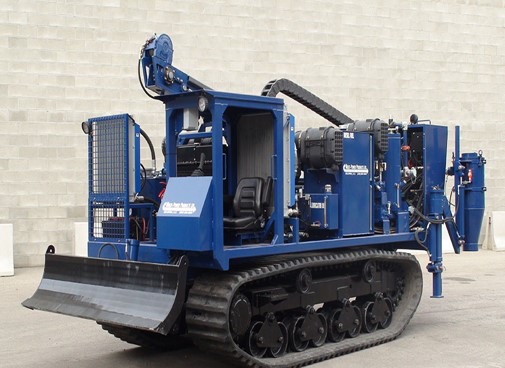

Prospector II - Track Mounted RC/RAB Drill

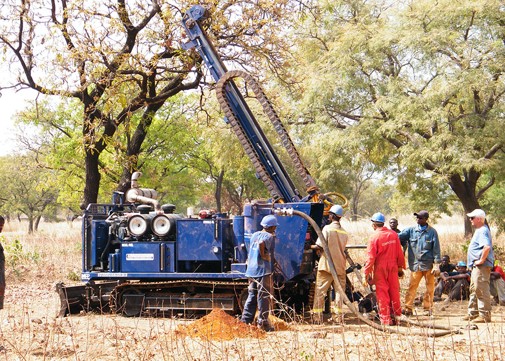

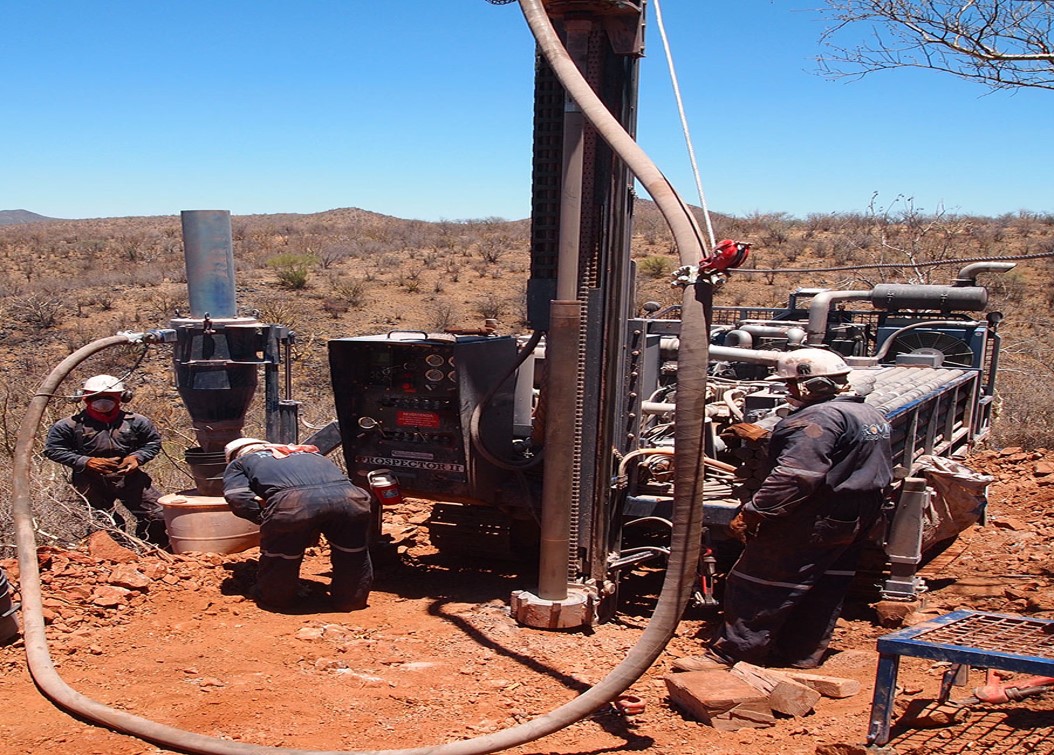

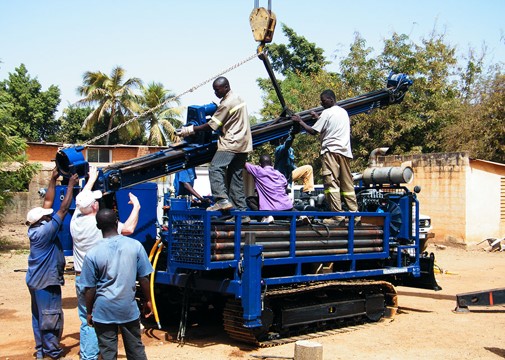

MPP’s most common RC/RAB/air core drill, the Prospector II was developed for all stages of mineral exploration. The rig features a 260 HP Cummins diesel, 400 CFM / 200 PSI on the board air compressor and 307 track carrier package. The rig can be configured for RAB (rotary air blast) and/or air core drilling for first pass exploration programs. The Prospector II can also be set up for RC (reverse circulation) drilling programs. The Prospector II is small enough to fit into a standard 20ft sea container ideal for programs in Africa and Central and South America.

Features

  • 260 HP QSB6.7 Cummins Diesel

  • 400 CFM / 200 PSI Compressor

  • Turnkey RAB/RC Drill

  • Can Be Shipped In a 20ft Sea Container


Prospector_II.jpg Prospector_II_-_4.jpg Prospector_II_-_6.jpg Prospector_II_-_9.jpg Prospector_II_-_7.jpg
DEPTH CAPACITIES: Based on 400 CFM / 200 PSI compressor
3-1/2" (89mm) 360 ft / 120 m*
  *Depending on ground conditions
PRIME MOVER
Model: Cummins QSB6.7, 6 cylinder, turbo charged diesel engine
Power: 260 HP @ 2200 RPM
Standard compressor
Model: Termoneccanica SCA14 62/28 air end
Capacity: 400 CFM / 200 PSI
Cooling
Ambient temperature rating: 50 Deg C (122 Deg F)
Coolers: Hydraulic driven fans
Track package
Model: Cat 307 steel tracked undercarriage
Design: Hyd. driven piston motors, spring brake, 2 speed, 450mm shoes
Speed: 3.3 mph
Top drive rotation unit:
Max torque: 2500 lbs /ft
RPM: 0-120 RPM
Spindle: Floating w/ NSE2-7/8" Reconn thread
Rotation motor: Char-Lynn 6K series
Mast and Feed
Design: Chain over cylinder feed
Pullback: 15,000 lbs.
Pullback speed: 0-76 fpm
Pulldown: 10,600 lbs.
Pulldown Speed: 0-73 fpm
Feed Stroke: 12.5 ft
Work Angel: 45 to 90 degree
Mast Dump: 40" travel
HYDRAULIC SYSTEM
Design: Fully hydraulic, no electronics, open loop
Capacity: 132 GPM
System pressure: 3200 PSI feed/rotation & 5000 PSI travel
Filtration: 10 micron
Components: Sauer Danfoss, Valvoil, Rexroth & Parker
Heat exchanger: Air:oil
Control Panel
Panel: Engine display, drilling functions, setup functions, & E-stop
Gauges: Rotation, holdback & air pressure
WINCHES
Design: Planetary style w/ fail safe brake
Pull: 1925 lbs.
Capacity: 100 ft x 1/4" cable
WATER PUMP
Max Flow: 9 GPM
Max Pressure: 550 PSI
Lubricator
Design: Adjustable pneumatically driven pump
Capacity: 0.634 gph
Drill Table/BOP
Opening: 5-1/2"

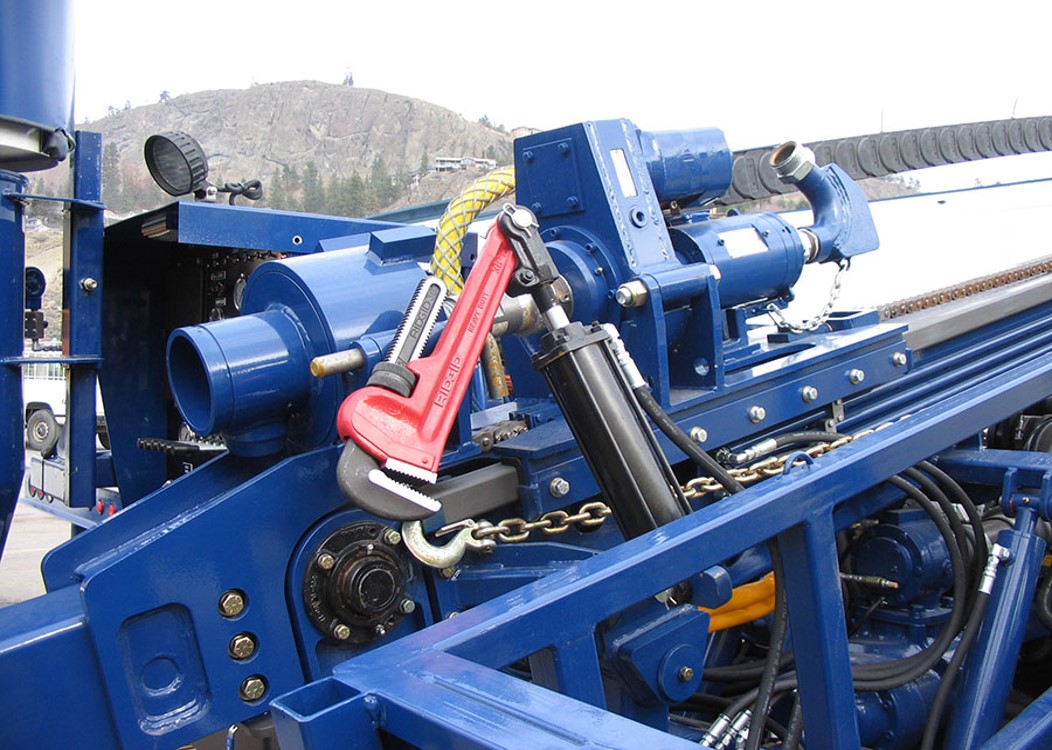

 Break Out: Hydraulic 36" pipe wrench
Weight
20,000 lbs
Dimensions
8' 7" W x 20' L x 9' 8" HT
INCLUDED ACCESSORIES
Sample cyclone, rod rack, rear stabilizers, blade assy, RC swivel
OPTIONS
Rubber tracks
Booster package
RAB package
Operator cab
Sample splitting equipment
Rod handlers
